Cisco Meraki Antennas

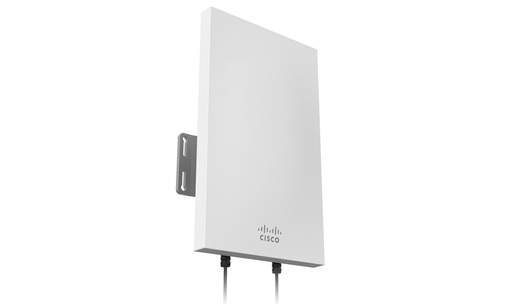

ANT-11 Sector Antenna (14 dBi Gain, 5 GHz)


ANT-11 Sector Antenna (14 dBi Gain, 5 GHz)

Sorry, this product has been discontinued. Please contact us for a replacement solution.

The Cisco Meraki ANT-11 sector antenna is a 14 dBi, MIMO, 5 GHz antenna ideal for providing client coverage over focused areas or creating backhaul links. It is designed for use with Cisco Meraki APs that have N-type connectors. Designed for use with Cisco Meraki MR66 or MR58 5 GHz radios. The sector antenna can extend the range of a Cisco Meraki MR66 or MR58 device by focusing the wireless signal in a specific direction; the best way to establish a medium distance point-to-point wireless link.

Features & Benefits:

Technical Specifications
Electrical
  • Antenna type: panel
  • Frequency range: 5.150 – 5.850 GHz
  • Gain: 14 dBi
  • Polarization: vertical / horizontal
  • Half power bandwidth / horizontal: 80
Physical & Environmental
  • Dimensions: 8.5" x 4.8" x 1.4" (215 mm x 122 mm x 35 mm)
  • Weight: 0.26 lbs (120 g)
  • Material: UV resistant plastic
  • Temperature: -40 F to 176 F (-40 C to 80 C)
  • Connector: 2 x N-type
Mounting Mounting hardware included
Mounts to walls, poles, or AP directly
Cables Cables with two N-type connectors included
Regulatory Certified for use with the MR66 and MR58
Warranty 1 Year hardware warranty included


Signal Coverage Pattern:


Vertical Port-1
Vertical Port-1
Horizontal Port-1
Horizontal Port-1
Vertical Port-2
Vertical Port-2
Horizontal Port-2
Horizontal Port-2

Download the Cisco Meraki ANT-11 Sector Antenna Datasheet (.PDF)

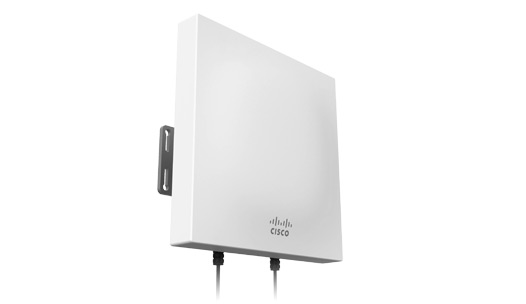

ANT-9DB-PA Panel Antenna (7.5 dBi 2.4 GHz)


ANT-9DB-PA Panel Antenna (7.5 dBi 2.4 GHz)

The Cisco Meraki Panel Antenna can help extend the range of a Cisco Meraki device by focusing the wireless signal in a specific direction; the best way to build a point-to-point wireless link.

Features & Benefits:

Technical Specifications
Electrical
  • Antenna type: panel
  • Frequency range: 2.4 – 2.5 GHz
  • Gain: 7.5 dBi
  • Polarization: vertical (linear)
  • Half power beam width / horizontal: 60°
  • Half power beam width / vertical: 60°
Physical & Environmental
  • Dimensions: 5.1" x 5.3" x 1.0" (130 x 135 x 26mm)
  • Weight: 0.4 lbs (187g)
  • Material: ABS plastic
  • Temperature: -40 F to 176 F (-40 C to 80 C)
  • Connector: RP-SMA
  • Cable: 3' (1m)
Mounting Pole and wall
Included Hardware
  • Antenna and cable
  • Pole mounting bracket
  • Hose Clamps
  • Wall mounting screws
Regulatory
  • Certified for use with the Cisco Meraki OD2
  • USA (FCC)
  • EU (CE)
Warranty 1 Year hardware warranty included


Signal Coverage Pattern:


Vertical
Vertical
Horizontal
Horizontal

Download the Cisco Meraki ANT-9DB-PA Panel Antenna Datasheet (.PDF)
