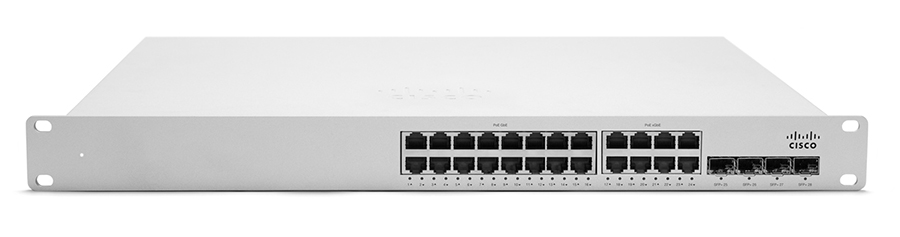

Cisco Meraki MS350-24X
Cloud Managed High-Capacity Switching

Overview:

MS350-24X Highlights

Built-In Multi-Site Cloud Management

The Cisco Meraki MS is the industry's first cloud managed switch, combining the benefits of cloud based centralized management with a powerful, reliable access platform. Cloud management has a number of benefits that make it easier to build networks large and small:

• Single pane of glass management of distributed switch deployments, wireless APs, and firewalls across multiple sites through the browser.
• Virtual stacking: manage up to tens of thousands of ports from a single pane of glass.
• Layer 7 OS, client, and hostname fingerprinting.
• Powerful Live Tools such as cable test to isolate physical layer issues.
• E-mail and SMS (text) alerts upon power loss, downtime, or configuration changes.
• Role-based administration and automatic, scheduled firmware upgrades over the web.
• Regular feature updates and enhancements delivered on demand from the Meraki cloud.
• No staging deployments

With cloud management, thousands of switch ports can be configured and monitored instantly, over the web. Provision remote sites without on-site IT, deploy network-wide configuration changes, and easily manage campus and distributed networks without training or dedicated staff.

Converged Voice, Video and Data Environments

The Cisco Meraki switch family is designed to unify data, voice, and video onto a single IP backbone. All Cisco Meraki switches support rich quality-of-service (QoS) functionality for prioritizing data, voice, and video traffic. The switches support eight class-of-service (CoS) queues on every port, enabling them to maintain end-to-end traffic prioritization.

Features:

Centrally Managed from the Cloud

The Cisco Meraki Cloud Networking architecture enables plug and play branch deployments and provides centralized visibility and control across any number of distributed locations.

The Cisco Meraki MS is the industry's first cloud managed switch, combining the benefits of cloud-based centralized management with a powerful, reliable access platform.

With cloud management, thousands of switch ports can be configured and monitored instantly, over the web. Provision remote sites without on-site IT, deploy network-wide configuration changes, and easily manage campus and distributed networks without training or dedicated staff.

Virtual Stacking

Cisco Meraki MS Switches feature virtual stacking — an industry first — that allows management of thousands of switch ports as one, without requiring a physical connection between switches.

Quickly find and configure switch ports across your entire network, even those in geographically-distributed locations. Easily configure ports for access devices, assign voice VLANs, control PoE, and more, with a few simple clicks and without complex CLI instructions.

Virtual stacking is built-in to all Cisco Meraki MS Switches, with no need for extension modules, proprietary cables, or extra configuration. Simply log in to the Cisco Meraki dashboard and manage the entire access switch infrastructure without concern for their interconnectivity.

Layer 7 Application and Client Visibility

Cisco Meraki MS Switches are the industry's only switches featuring integrated Layer 7 application and client fingerprinting and analysis. Hundreds of applications are automatically identified and reported, from business apps to BitTorrent and YouTube, so administrators can see where resources are spent.

Device fingerprinting with Google-like search allows administrators to easily find and identify individual users, iPads, Androids, and other devices. Search for devices across the entire network right from the Cisco Meraki dashboard, no matter which switch a device connects to.

Layer 3 Scalability & Failover

Quickly scale growing networks while ensuring redundancy for critical switch infrastructure with Meraki layer 3 switches. Intuitive, dynamic routing configurable in the dashboard simplifies management by removing complex command line interfaces. Traffic flow is optimized at line rate without sacrificing deep visibility into client devices and application use. Deploy ACLs directly on MS switches to secure boundaries between VLANs, hosts, services, and the Internet.

In addition to dynamic routing, layer 3 Meraki MS switches support VRRP for warm spare failover, ensuring immediate recovery of gateway responsibilities—avoiding downtime and client disruption.

QoS for Voice and Video

Deploy latency-sensitive applications such as voice and video by guaranteeing network performance. Voice and QoS features such as per-VLAN and protocol-based prioritization, as well as flexible QoS assignments, give inuitive, granular control.

Intelligent use of LLDP on the network makes deploying devices such as VoIP phones painless. Simply select a VLAN for voice in the dashboard, and selected ports will accept tagged traffic on the voice VLAN. The port also uses LLDP advertisements to recommend devices use that VLAN for voice traffic.

PoE / PoE+

The Cisco Meraki MS220-8P, MS22P, and MS42P Switches support PoE and PoE+, delivering up to 30W to support the most power-hungry devices. A total budget of 380W delivers the power necessary to run dozens of VoIP phones, access points, or other PoE devices.

Beyond simply delivering PoE output, Cisco Meraki Switches intelligently allocate power based on device advertisement (LLDP). Switches report consumed power vs. budgeted power in the Cisco Meraki dashboard, uncovering power savings across the switch network. Port-scheduling with built-in energy-saving templates reduces unnecessary power consumption and increases security.

Remote Live Tools and Alerts

MS Switches make powerful live tools available for remote troubleshooting at any time. From infrastructure uptime and performance testing to device troubleshooting, live tools simplify day-to-day network administration and dramatically shorten time to resolution.

Built-in Ethernet cable testing no longer requires an excursion to one or more switch closets just to verify cable integrity. Simply select a switch port, run a cable test, and see results right in the dashboard, even if there is no device connected on the other end.

Each Cisco Meraki MS is automatically monitored 24×7 via the cloud. Email and text message alerts are configurable to immediately notify administrators of configuration changes, switch downtime, and even per-port disconnection events.

Enterprise Security

Extending security down to the port level has never been easier. MS Switches integrate seamlessly with enterprise-grade security systems using 802.1X. Define access policies, segregate guest devices, and quarantine entire environments right from the dashboard.

Applying policies on many ports takes just a few clicks — even if the ports are spread across many switches. Simply search to find the ports of interest, click to apply the desired policies, and save your changes. Policies are pushed immediately to the desired ports.

Seamless firmware updates, two factor authentication, and other built-in protections make secure, PCI and HIPAA-compliant networks easy and cost effective.

Lifetime Warranty and Advanced Replacement

MS Switches feature long lifetime components and are designed for high reliability. Even though they're built to provide years of reliable service, MS Switches also include a lifetime warranty, and are eligible for advanced shipment replacement, minimizing potential downtime and securing your investment.

MS Cloud Managed Switches Solutions:

MS Cloud Managed Switches

The Cisco Meraki MS is the world's first cloud-managed switch, bringing the benefits of the cloud to enterprise networks: simplified management, reduced complexity, network wide visibility and control, and lower cost for branch and campus deployments.

Cisco Meraki access switching is available in two product lines — the MS220 and MS320 families. Mission-critical features — like deep, Layer 7 application visibility, virtual stacking, QoS for business critical applications, 802.1X access control, and more — are present in both families.

The MS350 is the flagship Meraki layer 3 stackable access switch, with high-speed connectivity including multigigabit, high availability, PoE+ and UPoE, optional redundant power supplies and fans. MS350 switches physically stack up to 8 units, with 160Gbps of stack bandwidth.

The MS220 family provide layer 2 access switching, is ideal for deploying to branch locations, and supports an optional, rack-mountable remote PSU.

Inside the Meraki MS
MS220-48LP shown, features vary by model

Enterprise-Class Hardware
Cisco Meraki switches feature high-end hardware without the high-end price, including:

• Four built-in small form-factor pluggable SFP+ ports (two SFP ports for MS220-8/P)
• GbE and 10 GbE uplink ports for high-speed connectivity to aggregation layer switches or other upstream devices
• Wire-speed switch fabric (up to 176 Gbps) and QoS queues per port for converged voice, video, and data deployments
• High performance 160Gbps stacking bandwidth (MS350)
• Low power consumption, quiet acoustic designs, and shallow rack depth options, enabling flexible deployment in wiring closets as well as offices and classrooms
• Fanless design on select models
• Up to 740 watt PoE budget with PoE+ support for powering APs, phones, cameras, and other PoE enabled devices (124W for MS220-8/P)
• Lifetime hardware warranty and advanced replacement at no additional cost
• Field-replaceable, hot-swappable power supplies and fans. RPS option for mission-critical applications

Full Enterprise Feature Set
Cisco Meraki switches include all of the traditional Ethernet features found on the highest end products, including:

• Quality-of-Service (QoS) to prioritize mission critical traffic such as voice and video
• IEEE 802.1X support for port based network access control
• MAC-based RADIUS auth and MAC whitelisting
• Voice VLAN support for simplified VoIP deployments
• Port Mirroring to monitor network traffic
• DHCP snooping to prevent users from adding unauthorized DHCP servers on the network
• IGMP Snooping to optimize network performance with multicast traffic
• Link Aggregation Control Protocol (LACP) for high-capacity trunking, stacking, and increased availability
• Broadcast storm protection, spanning tree, BPDU guard, root guard, and other safeguards to guard against misconfigurations and reduce convergence time
• Per port VLAN configuration
• Multiple administrative roles with sophisticated security policy management
• Layer 3 on MS320 series extends routing down to the network edge

Simplified Management and Operations

Cisco Meraki's cloud managed architecture makes it simpler than ever to quickly provision and reconfigure switch ports with security, QoS, and other parameters. The Cisco Meraki dashboard provides unified policies, event logs, and monitoring, which make it easy to manage and grow large network deployments.

By providing a complete, powerful set of management functions over the web, Cisco Meraki's cloud-based management eliminates the need for proprietary command line configuration interfaces which require expensive and time consuming certifications. Cisco Meraki MS switches can be fully deployed and provisioned in minutes, without requiring any local configuration or staging. Additional or replacement switches can be sent to remote offices and installed by non-technical staff, saving thousands of dollars in time and travel expenses.

The Cisco Meraki MS family also includes several remote diagnostic features, from network connectivity and cable integrity tests to latency measurement tools. For deep client troubleshooting, administrators can even perform per-port remote pcap packet captures without any additional probes or hardware on site.

Layer 7 Visibility
Cisco Meraki is the only switch to include integrated Layer 7 fingerprinting. Identify hundreds of applications from business apps to BitTorrent and YouTube. User fingerprinting with Google-like search allows administrators to easily identify and control individual users, PCs, iMacs, iPads, Androids, and other devices. This unprecedented visibility allows you to optimize network resources and maintain optimal network performance.

Converged Voice, Video and Data Environments
The Cisco Meraki switch family is designed to unify data, voice, and video onto a single IP backbone. All Cisco Meraki switches support rich quality- of-service (QoS) functionality for prioritizing data, voice, and video traffic. The switches support eight class-of-service (CoS) queues on every port, enabling them to maintain end-to-end traffic prioritization.

PoE models provide 15.4 watts of power per port for VoIP telephones, IP security cameras, wireless access points (APs), and other IP devices. The Cisco Meraki MS switches also support standards-based 25.5 watt (30 watt max per port) IEEE 802.3at for powering networked devices like multiple radio IEEE 802.11n APs and video phones that may require more power than available with IEEE 802.3af. In addition, using LLDP, PoE power is intelligently budgeted to maximize the number of PoE clients supported.

To ease deployment, Cisco Meraki switches support the industry- standard Link Layer Discovery Protocol (LLDP), enabling switches to automatically discover Ethernet-enabled devices, determine their power requirements and join the correct virtual LAN (VLAN).

Cisco Meraki's Unified Software Architecture
Cisco Meraki switches run the same Cisco Meraki operating system used by Cisco Meraki's firewalls and wireless LAN products. The use of a common operating system allows Cisco Meraki to deliver a consistent experience across all product lines

Layer 3
Cisco Meraki MS320 series switches augment security and performance with built-in layer 3 benefits. Large network deployments can create scalable network architecutres and manage routing between VLANs through Cisco Meraki's intuitive, web-based dashboard.

Specifying Layer 3 subnets and routes

Designed for Reliability & Environmental Efficiency

The Cisco Meraki switch family was designed for reliable, long-lived operation in wiring closet environments, which may be prone to high temperatures and limited ventilation. By minimizing total component count and only using proven switching silicon, Cisco Meraki is able to deliver mean time between failure (MTBF) ratings of over 750,000 hours on products such as the Cisco Meraki MS220-8.

Each Cisco Meraki switch also operates with a split-plane architecture, where silicon-based switching and data forwarding are separated from software-based control and management. By decoupling the underlying switching logic from control, each unit is able to deliver wire-speed switching even when advanced software features such as Layer 7 host and OS fingerprinting are enabled.

Finally, the highly integrated designs of Cisco Meraki switches result in power and cooling savings in large deployment environments of 30- 60% when compared with similar managed Gigabit switches.

Cloud Management:

Cisco Meraki's cloud based management provides centralized visibility & control over Cisco Meraki's wired & wireless networking hardware, without the cost and complexity of wireless controllers or overlay management systems. Integrated with Cisco Meraki's entire product portfolio, cloud management provides feature rich, scalable, and intuitive centralized management for networks of any size.

Highlights

• Unified visibility and control of the entire network via a single dashboard: wireless, switching, and security appliances
• Streamlines large networks with tens of thousands of endpoints
• Zero-touch provisioning for rapid deployment
• Built-in multi site network management tools
• Automated network monitoring and alerts
• Intuitive interface eliminates costly training or added staff
• Network tagging engine - search and sync settings by tag
• Role-based administration and auditable change logs
• Continuous feature updates delivered from the cloud
• Highly available and secure (PCI / HIPAA compliant)

Cloud Managed Networks

Cisco Meraki's hardware products are built from the ground up for cloud management. As a result, they come out of the box with centralized control, layer 7 device and application visibility, real time web-based diagnostics, monitoring, reporting, and much more.

Cisco Meraki networks deploy quickly and easily, without training or dedicated staff. Moreover, Cisco Meraki provides a rich feature set that provides complete control over devices, users, and applications, allowing for flexible access policies and rich security without added cost or complexity.

Cisco Meraki's cloud management provides the features, security, and scalability for networks of any size. Cisco Meraki scales from small sites to campuses, and even distributed networks with thousands of sites. Cisco Meraki devices, which self-provision via the cloud, can be deployed in branches without IT. Firmware and security signature updates are delivered seamlessly, over the web. With the cloud, branches can automatically establish secure VPN tunnels between one another with a single click.

With a secure, PCI and HIPAA compliant architecture and fault tolerant design that preserves local network functionality during WAN outages, Cisco Meraki is field proven in high security and mission critical network applications.

Cloud Management Architecture

Cisco Meraki's architecture provides feature rich network management without on-site management appliances or WiFi controllers.

Every Cisco Meraki device - including wirelesss access points, Ethernet switches, and security appliances - connects over the Internet to Cisco Meraki's datacenters, which run Cisco Meraki's cloud management platform. These connections, secured via SSL, utilize a patented protocol that provides real time visibility and control, yet uses minimal bandwidth overhead (typically 1 kbps or less.)

In place of traditional command-line based network configuration, Cisco Meraki provides a rich web based dashboard, providing visibility and control over up to tens of thousands of Cisco Meraki devices, anywhere in the world. Tools, designed to scale to large and distributed networks, make policy changes, firmware updates, deploying new branches, etc. simple and expedient, regardless of size or location. Cisco Meraki's real time protocols combine the immediacy of on-premise management applications with the simplicity and centralized control of a cloud application.

Every Cisco Meraki device is engineered for cloud management. Specifically, this means that Cisco Meraki devices are designed with memory and CPU resources to perform packet processing, QoS, layer 3-7 security, encryption, etc. at the network edge. As a result, no network traffic passes through the cloud, with the cloud providing management functionality out of the data path. This architecture enables networks to scale horizontally, adding capacity simply by adding more endpoints, without concern for centralized bottlenecks or chokepoints. Equally important, since all packet processing is performed on premise, end-user functionality is not compromised if the network's connection to the cloud is interrupted.

Cisco Meraki's cloud platform is designed to spread computation and storage across independent server clusters in geographically isolated datacenters. Any server or datacenter can fail without affecting customers or the rest of the system. Additionally, Cisco Meraki's datacenter design is field proven to support tens of thousands of endpoints.

Cloud Management Architecture

Powerful Insight and Troubleshooting Tools

Cisco Meraki's cloud architecture delivers powerful insight and includes live tools integrated directly into the dashboard, giving instant analysis of performance, connectivity, and more. Using live tools, network administrators no longer need to go on site to perform routine troubleshooting tests. Visibility into devices, users, and applications gives administrators the information needed to enforce security policies and enable the performance needed in today's demanding network environments.

Troubleshooting tools such as ping, traceroute, throughput, and even live packet captures are integrated directly into the Cisco Meraki dashboard, dramatically reducing resolution times and enabling troubleshooting at remote locations without on-site IT staff.

Layer 7 application visibility

Out-of-Band Control Plane

Cisco Meraki's out-of-band control plane separates network management data from user data. Management data (e.g., configuration, statistics, monitoring, etc.) flows from Cisco Meraki devices (wireless access points, switches, and security appliances) to Cisco Meraki's cloud over a secure Internet connection. User data (web browsing, internal applications, etc.) does not flow through the cloud, instead flowing directly to its destination on the LAN or across the WAN.

Advantages of an out of band control plane:

Scalability

• Unlimited throughput: no centralized controller bottlenecks
• Add devices or sites without MPLS tunnels
• Add switching capacity without stacking limitations

Reliability

• Redundant cloud service provides high availability
• Network functions even if management traffic is interrupted

Security

• No user traffic passes through Cisco Meraki's datacenters
• Fully HIPAA / PCI compliant

What happens if a network loses connectivity to the Cisco Meraki cloud?
Because of Cisco Meraki's out of band architecture, most end users are not affected if Cisco Meraki wireless APs, switches, or security appliances cannot communicate with Cisco Meraki's cloud services (e.g., because of a temporary WAN failure):

• Users can access the local network (printers, file shares, etc.)
• If WAN connectivity is available, users can access the Internet
• Network policies (firewall rules, QoS, etc.) continue to be enforced
• Users can authenticate via 802.1X/RADIUS and can roam wirelessly between access points
• Users can initiate and renew DHCP leases
• Established VPN tunnels continue to operate
• Local configuration tools are available (e.g., device IP configuration)

While Cisco Meraki's cloud is unreachable, management, monitoring, and hosted services are temporarily unavailable:

• Configuration and diagnostic tools are unavailable
• Usage statistics are stored locally until the connection to the cloud is re-established, at which time they are pushed to the cloud
• Splash pages and related functionality are unavailable

Cisco Meraki Datacenter Design

Cisco Meraki's cloud management service is colocated in tier-1, SAS70 type II certified datacenters. These datacenters feature state of the art physical and cyber security and highly reliable designs. All Cisco Meraki services are replicated across multiple independent datacenters, so that customer-facing services fail over rapidly in the event of a catastrophic datacenter failure.

Security Tools for Administrators

In addition to Cisco Meraki's secure out-of-band architecture and hardened datacenters, Cisco Meraki provides a number of tools for administrators to maximize the security of their network deployments. These tools provide optimal protection, visibility, and control over your Cisco Meraki network.

Two-factor authentication
Two-factor authentication adds an extra layer of security to an organization's network by requiring access to an administrator's phone, in addition to her username and password, in order to log in to Cisco Meraki's cloud services. Cisco Meraki's two factor authentication implementation uses secure, convenient, and cost effective SMS technology: after entering their username and password, an administrator is sent an a one-time passcode via SMS, which they must enter before authentication is complete. In the event that a hacker guesses or learns an administrator's password, she still will not be able to access the organization's account, as the hacker does not have the administrator's phone. Cisco Meraki includes two-factor authentication for all enterprise users at no additional cost.

Password policies
Organization-wide security policies for Cisco Meraki accounts help protect access to the Cisco Meraki dashboard. These tools allow administrators to:

• Force periodic password changes (e.g., every 90 days)
• Require minimum password length and complexity
• Lock users out after repeated failed login attempts
• Disallow password reuse
• Restrict logins by IP address

Role-based administration
Role-based administration lets supervisors appoint administrators for specific subsets of an organization, and specify whether they have read-only access to reports and troubleshooting tools, administer managed guest access, or can make configuration changes to the network. This minimizes the chance of accidental or malicious misconfiguration, and restricts errors to isolated parts of the network.

Configuration change alerts
The Cisco Meraki system can automatically send human-readable email and text message alerts when configuration changes are made, enabling the entire IT organization to stay abreast of new policies. Change alerts are particularly important with large or distributed IT organizations.

Configuration and login audits
Cisco Meraki logs the time, IP, and approximate location (city, state) of logged in administrators. A searchable configuration change log indicates what configuration changes were made, who they were made by, and which part of the organization the change occurred in.

SSL certificates
Cisco Meraki accounts can only be accessed via https, ensuring that all communication between an administrator's browser and Cisco Meraki's cloud services is encrypted.

Idle Timeout
30 seconds before being logged out, users are shown a notice that allows them to extend their session. Once time expires, users are asked to log in again.

Specifications:

Specifications
Management	Managed via the Web with the Meraki cloud management platform Integrated with Meraki wireless, security appliance, and device management Zero-touch remote provisioning (no staging needed) Detailed historical per-port and per-client usage statistics DHCP, client, and hostname fingerprinting SNMPD allows integration with third party network management solutions Automatic firmware upgrades
Remote Diagnostics	Email and SMS (text) alerts 1 Cable testingLive remote packet capture Aggregated event and configuration change logs with instant search
Scalable Stacking	Virtual stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration Physical stacking of up to 8 switches with 160Gbps stack bandwidth (MS350)
Ethernet Switching Capabilities	802.1p Quality of Service prioritization 802.1Q VLAN tagging for up to 4,095 VLANs 802.1D Spanning Tree Protocol (STP) and 802.1w Rapid Spanning Tree Broadcast storm control 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP) 802.3ad Link aggregation with up to 8 ports per aggregate Port mirroring IGMP snooping for multicast filtering MAC forwarding entries: MS220-8/24: 8,000, MS220-48: 16,000, MS320 family: 32,000, MS350 family: 96,000 (applies to PoE and non-PoE models).
Security	Integrated two-factor authentication Role-based administration Corporate wide password policy enforcement IEEE 802.1X port-based security MAC-based RADIUS authentication Sticky MAC MAC whitelisting BPDU guard Root guard IPv4 ACLs
Performance	Non-blocking fabric 2.5 microsecond latency Jumbo frame support (9600 byte Ethernet frame)
Layer 3 (MS320/350 series)	Static routing DHCP Helper OSPFv2 3Warm Spare for L3 gateway redundancy DHCP server Automatic DHCP failover in warm spare mode
Power	Power input: 100 - 240 VAC, 47-63 Hz Power consumption: 5-888W
Mounting	Rack-mountable with included rack mount hardware (except MS220-8/P) Desktop-mountable with included feet Wall-mountable on MS220-8/PKensington lock on MS220-8/P
Environment	Operating temperature: 32 °F to 104 °F (0 °C to 40 °C), 45 °C for MS350 Humidity: 5 to 95% non-condensing Low acoustic noise for office environments; fanless for MS220-8/P and MS220-24
Regulatory	CSA (US) IC (Canada) CE (Europe) C-Tick (Australia/New Zealand) RoHS

MS350 Family
Model	Physical Dimensions	Interface	Idle/Full Load Power(W)	Switching Capacity
350-24	WEIGHT: 12.37 lb. (5.61 kg) SIZE: 19.08” (w) x 18.8 (l)* x 1.75” (h) (48.5 x 47.8 x 4.4 cm) with power supply fitted	24x 10/100/1000BASE-T Ethernet RJ45 4x SFP+ for 10GbE uplink Auto negotiation and crossover detection (auto-MDIX crossover)	56/66	128 Gbps
350-24P	WEIGHT: 13.14 lb. (5.96 kg) SIZE: 19.08” (w) x 18.8” (l) x 1.75” (h) (48.5 x 47.8 x 4.4 cm) with power supply fitted	24x 10/100/1000BASE-T Ethernet RJ45 4x SFP+ for 10GbE uplink Auto negotiation and crossover detection (auto-MDIX crossover)	57/466	128 Gbps
350-48	WEIGHT: 12.85 lb. (5.83 kg) SIZE: 19.08” (w) x 18.8” (l) x 1.75” (h) (48.5 x 47.8 x 4.4 cm) with power supply fitted	48x 10/100/1000BASE-T Ethernet RJ45 4x SFP+ for 10GbE uplink Auto negotiation and crossover detection (auto-MDIX crossover)	56/63	176 Gbps
350-48LP	WEIGHT: 13.82 lb. (6.27 kg) SIZE: 19.08” (w) x 18.8” (l) x 1.75” (h) (48.5 x 47.8 x 4.4 cm) with power supply fitted	48x 10/100/1000BASE-T Ethernet RJ45 4x SFP+ for 10GbE uplink Auto negotiation and crossover detection (auto-MDIX crossover)	63/478	176 Gbps
350-48FP	WEIGHT: 14.26 lb. (6.47 kg) SIZE: 19.08” (w) x 18.8” (l) x 1.75” (h) (48.5 x 47.8 x 4.4 cm) with power supply fitted	48x 10/100/1000BASE-T Ethernet RJ45 4x SFP+ for 10GbE uplink Auto negotiation and crossover detection (auto-MDIX crossover)	69/888	176 Gbps
350-24X	WEIGHT: 14.48 lb. (6.57 kg) SIZE: 19.08” (w) x 20.3” (l) x 1.75” (h) (48.5 x 51.6 x 4.4 cm) with power supply fitted	24x 10/100/1000BASE-T Ethernet RJ45 including 8x Multigigabit capable ports 4x SFP+ for 10GbE uplink 2x stacking connectors • Auto negotiation and crossover detection (auto-MDIX crossover)	215/1655	432 Gbps

Accessories:

Optics

The Cisco Meraki MS support pluggable optics for high-speed connectivity. Cisco Meraki offers several standards-based Gigabit and 10 Gigabit pluggable modules

Model	Description	Standard	Range	Compatibility
MA-SFP-1GB-TX1	Cisco Meraki 1GbE Module for Category 5 Copper Wire, RJ-45	1000BASE-T	100m	MS220/320/350/420 Family
MA-SFP-1GB-SX	Cisco Meraki 1 GbE SFP SX Multi-Mode Fiber Module	1000BASE-SX	550m	MS220/320/350/420 Family
MA-SFP-1GB-LX10	Cisco Meraki 1 GbE SFP LX10 Single-Mode Fiber Module	1000BASE-LX10	10km	MS220/320/350/420 Family
MA-SFP-10GB-SR	Cisco Meraki 10 GbE SFP+ SR Multi-Mode Fiber Module	10GBASE-SR	400m	MS320/350/420 Family
MA-SFP-10GB-LRM	Cisco Meraki 10GbE SFP+ LRM Multi-Mode Fiber Module	10GBASE-LRM	220m	MS320/350/420 Family
MA-SFP-10GB-LR	Cisco Meraki 10 GbE SFP+ LR Single-Mode Fiber Module	10GBASE-LR	10km	MS320/350/420 Family
MA-CBL-TA-1M	Cisco Meraki 10 GbE Twinax Cable with SFP+ Connectors	10GSFP+Cu	1m	MS320/350/420 Family
MA-CBL-40G-50CM	Cisco Meraki 40GbE Stacking Cable, 0.5 Meter	40GBASE-QSFP	0.5m	MS350 Family
MA-CBL-40G-1M	Cisco Meraki 40GbE Stacking Cable, 1 Meter	40GBASE-QSFP	1m	MS350 Family
MA-CBL-40G-3M	Cisco Meraki 40GbE Stacking Cable, 3 Meter	40GBASE-QSFP	3m	MS350 Family

¹ Available Jan 2014
Note: Cisco Meraki SFPs use LC connectors. Cisco Meraki does not guarantee third-party optic and support

Power Options

Back end of MS320-24P shown, highlighting redundant power supplies

MS320/350 Family
Model	Description	Available PoE / PoE+ Power	Default Power Supply	Optional Redundant Power Supply
MS320-24-HW MS350-24-HW	Cloud-Managed L3 24 Port Gigabit Switch	-	PWR-MS320- 250WAC	PWR-MS320-250WAC
MS320-24P-HW MS350-24P-HW	Cloud-Managed L3 24 Port Gigabit 370W PoE Switch	370W	PWR-MS320- 640WAC	PWR-MS320-640WAC
MS350-24-HW	Cloud-Managed L3 48 Port Gigabit Switch	-	PWR-MS320-250WAC	PWR-MS320-250WAC
MS350-24LP-HW	Cloud-Managed L3 48 Port Gigabit 370W PoE Switch	370W	PWR-MS320-640WAC	PWR-MS320-640WAC
MS350-24FP-HW	Cloud-Managed L3 48 Port Gigabit 740W PoE Switch	740W	PWR-MS320-1025WAC	PWR-MS320-1025WAC

Documentation:

Download the Cisco Meraki MS Family Datasheet (PDF).

Download the Cisco Meraki Cloud Management Datasheet (PDF).
