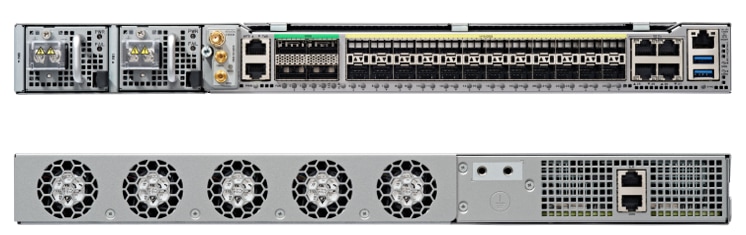

Cisco 8010 Series Large Density Fixed Routers
Silicon One A100-powered 1RU fixed routers with Class C timing, MACsec/IPsec encryption, and industrial-temperature support for dense metro access and preaggregation deployments.
Product Overview
Silicon One A100
Powered by the Cisco Silicon One A100 ASIC, delivering up to 500 Mpps forwarding performance with unified silicon architecture.
Class C Timing
G.8273.2 Class C timing compliant with modular GNSS and PRTC-B support for carrier-grade synchronization.
End-to-End Encryption
MACsec at line rate on all ports plus IPsec for secure data communication across metro access networks.
Industrial Temperature
I-Temp rated from -40 to +65 degrees C, suitable for indoor or outdoor cabinets with IP65/IP66 sealed enclosures.
Versatile Interfaces
Flexible Ethernet options from 1G and 25G to 100G and 400G, with low-speed 10/100/1000M RJ-45 options.
Power Optimized
Gold-level efficient PSUs with advanced power algorithms reduce OpEx. Minimal plastic for lower carbon footprint.
TL;DR

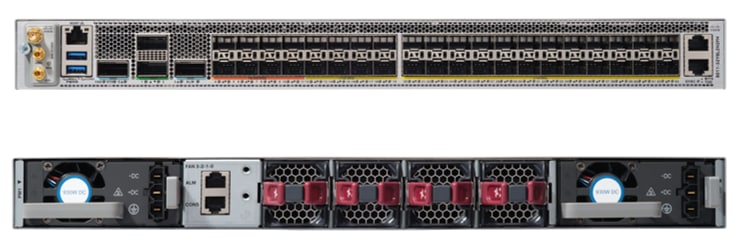

The Cisco 8010 Series are compact 1RU fixed routers built on the Silicon One A100 ASIC for dense metro access and preaggregation. They deliver Class C timing, line-rate MACsec/IPsec encryption, and industrial-temperature operation, all on Cisco IOS XR with Flexible Consumption Model 2.0 licensing. Two models are available: the 8011-4G24Y4H-I with 4x100G, 24x25G, and 4x1G copper ports, and the 8011-32Y8L2H2FH with 2x400G, 2x100G, 32x25G, and 8x50G ports.
Frequently Asked Questions
What ASIC powers the 8010 Series?
The Cisco Silicon One A100 ASIC, a unified silicon architecture that scales from web-scale to service provider deployments.
What timing standards does the 8010 Series support?
G.8273.2 Class C timing, IEEE 1588-2008 PTP (T-GM, T-BC), G.8275.1, G.8275.2, G.8265.1, eSyncE, and optional internal PRTC-B GNSS receiver.
Can the 8010 Series be deployed outdoors?
Yes. The 8011-4G24Y4H-I supports industrial temperature (-40 to +65 degrees C) and is suitable for sealed IP65/IP66 outdoor cabinets conforming to GR487 specs.
What licensing model does the 8010 Series use?
Cisco IOS XR Flexible Consumption Model (FCM) 2.0, consisting of Hardware, Right to Use (RTU), and System-Level Software Innovation Access (SIA) components.
