Up to 518 Tbps Modular Chassis Silicon One IOS XR

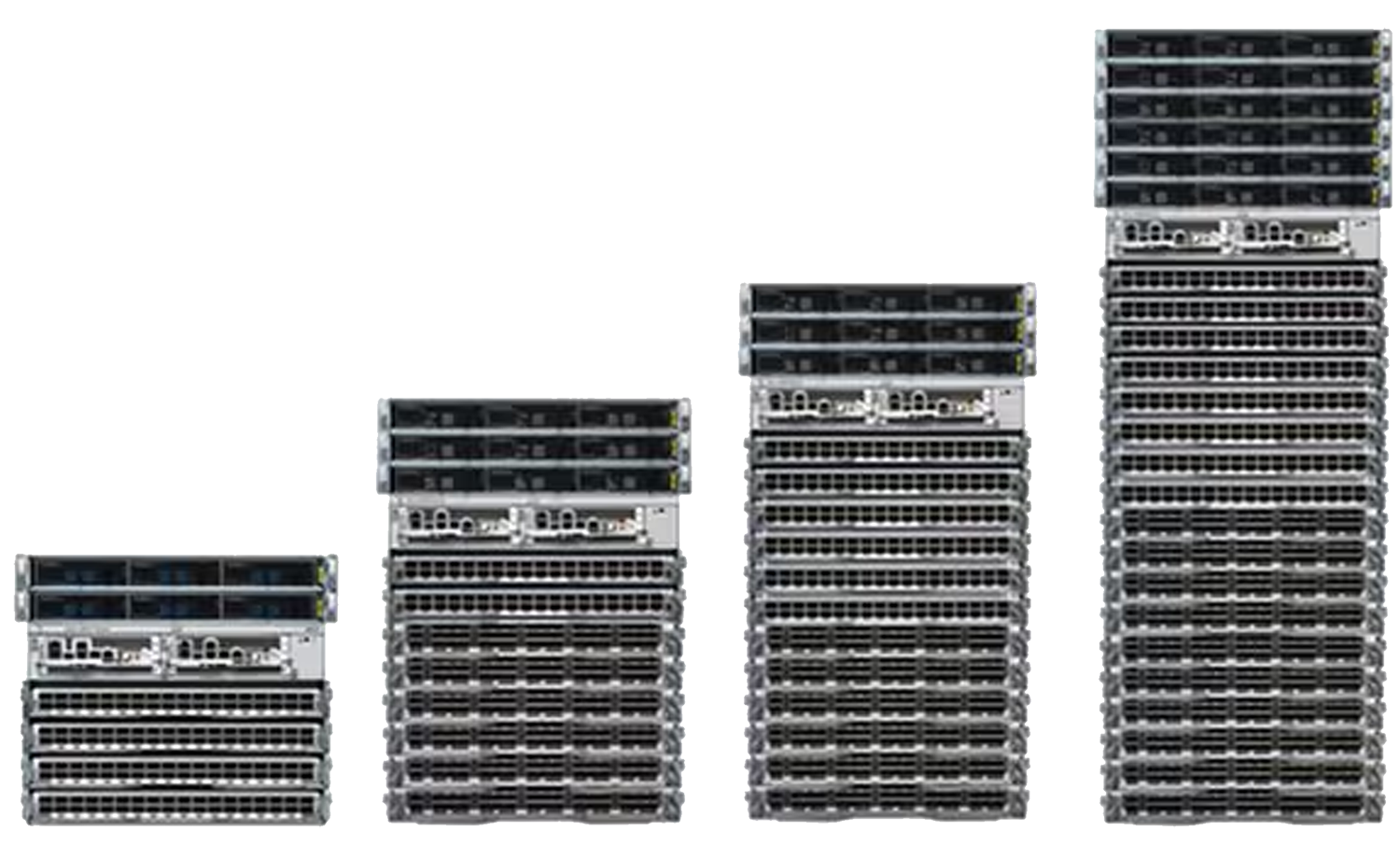

Cisco 8800 Series Modular Routers

High-performance modular routing platforms with Silicon One processors, available in 4, 8, 12, and 18-slot chassis for core, peering, DCI, and aggregation use cases.

Read Data Sheet Get a Quote

Product Overview

Silicon One Powered

Built on Cisco Silicon One processors spanning three generations (Q100, Q200, P100) for unmatched packet processing and deep buffering.

Scalable Chassis

Available in 4, 8, 12, and 18-slot configurations scaling from 115 Tbps to 518 Tbps with 800G line cards.

Distributed Architecture

Orthogonal design with direct connection from line cards to fabric modules for maximum throughput and reliability.

Advanced Security

Wire-speed encryption, Cisco Trust Anchor Module (TAM), Trusted Platform Module (TPM), and secure boot chain.

Energy Efficient

Dynamic fan control algorithms with advanced thermal telemetry drive lower power consumption and cost savings.

Investment Protection

Backward compatible with previous-generation line cards and ready for future expansion to higher-speed ports.

TL;DR

The Cisco 8800 Series are distributed modular routers built on Silicon One that deliver up to 518 Tbps of system throughput. Available in 10 RU to 33 RU chassis sizes (4 to 18 slots), they support 800G, 400G, and 100G line cards with hot-swappable, redundant components throughout. Powered by IOS XR, they serve core, peering, DCI, and high-capacity aggregation roles for service providers and large enterprises.

Frequently Asked Questions

What chassis sizes are available?

The 8800 Series is available in 4-slot (8804, 10 RU), 8-slot (8808, 16 RU), 12-slot (8812, 21 RU), and 18-slot (8818, 33 RU) configurations.

What is the maximum system throughput?

With 800G line cards, the 8818 delivers up to 518.4 Tbps. With 400G line cards, it reaches 259.2 Tbps.

Can I mix different generation line cards?

Yes. IOS XR supports interoperability of Q100, Q200, and P100 line cards in the same chassis with configurable NPU compatibility modes.

What operating system does it run?

Cisco IOS XR with modular Linux-based packaging, segment routing, EVPN, and streaming telemetry. SONiC is also supported for data center use cases.

Are all components hot-swappable?

Yes. Route processors, line cards, fabric cards, fans, and power supplies are all hot-swappable with redundant supervisor, power, fabric, and cooling modules.

Features and Benefits

Next-generation modular routing at scale.

The 8800 Series combines Silicon One innovation with IOS XR to deliver unmatched density, performance, and operational simplicity.

System Capacity

Up to 518 Tbps with 800G line cards, enabling operators to outpace traffic demands while reducing router and optics count.

Silicon One Innovation

Three generations of Silicon One (Q100, Q200, P100) provide unparalleled packet processing with powerful memory architecture.

Advanced Security

Integrated wire-speed encryption, TAM/TPM hardware trust, and secure boot chain protect against threats.

High Availability

Redundant route processors, fabric cards, fans, and power supplies with hot-swap capability for always-on infrastructure.

Energy Efficiency

Advanced thermal telemetry with dynamic fan control algorithms drive lower power consumption and positive environmental impact.

Investment Protection

Backward compatible with previous-generation line cards and forward-ready for higher-speed ports, reducing TCO.

Feature & Benefit Details

Feature

Benefit

System capacity and scalability

Network operators gain the bandwidth, density, and scale needed to outpace increasing traffic demands, reducing the number of routers and optics required.

High performance

Groundbreaking Silicon One innovation powers unparalleled packet processing with powerful memory architecture for superior performance.

Advanced security

Robust, integrated security features protect the network from threats, ensuring data integrity and compliance with regulatory requirements.

High availability

Critical for maintaining always-on infrastructure to meet stringent SLAs across the core with redundant components throughout.

Energy efficiency

Dynamic fan control with advanced thermal telemetry enables substantial positive environmental impact and cost savings.

Investment protection

Backward compatible with previous generation and ready for future expansion to higher-speed ports, reducing Total Cost of Ownership.

Specifications

Chassis Options

8804-SYS4 slots, 10 RU

8808-SYS8 slots, 16 RU

8812-SYS12 slots, 21 RU

8818-SYS18 slots, 33 RU

Max Throughput (800G LC)

8804115.2 Tbps

8808230.4 Tbps

8812345.6 Tbps

8818518.4 Tbps

Route Processor (RP2)

Processor8-core at 2.7 GHz

System memory64 GB DRAM

SSD storage256 GB

Management ports1 RJ-45 + 2 SFP+ (1/10G)

TimingClass C, SyncE, 1588, GNSS

Physical & Environmental

RP slots2 (1+1 redundancy)

Fabric module slots8

Operating temp0 to 40 C (32 to 104 F)

AirflowFront-to-rear

Ordering Information

8804-SYS

4-slot system bundle with RP, fabric, power supplies, and accessories.

8808-SYS

8-slot system bundle with RP, fabric, power supplies, and accessories.

8812-SYS

12-slot system bundle with RP, fabric, power supplies, and accessories.

8818-SYS

18-slot system bundle with RP, fabric, power supplies, and accessories.

Documentation

Data Sheet

Cisco 8800 Series Modular Routers Data Sheet. Full specifications, chassis options, line card compatibility, and ordering information.

Download PDF ›

Ready to deploy the Cisco 8800 Series?

Our routing specialists will build a custom quote — including volume discounts, multi-year licensing, and professional services.

Volume and multi-year pricing available
Cisco Smart Net Total Care bundling
Professional deployment & migration services
Response within one business day

Get a Quote Contact Sales
