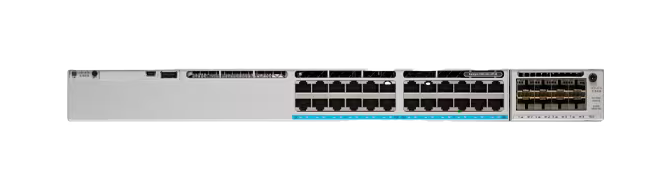

Cisco Catalyst Meraki C9300-48UXM-M Multigigabit Switch
High-performing UPoE mGig switch that enhances network performance for demanding enterprise environments

Overview:

Unparalleled network performance and scalability for modern campuses, plus intent-based security with Adaptive Policy.

The Catalyst 9300-M addresses the most demanding enterprise applications by combining the simplicity of the Meraki dashboard with powerful switching hardware. To satisfy high-bandwidth applications and the deployment of high-speed 802.11ax/wifi-6 access points, the Catalyst 9300-M provides multigigabit ports, 480G stacking, and modular 10/40G uplinks. The Catalyst 9300-M delivers resiliency with fast stack convergence and StackPower. The Catalyst 9300-M provides Adaptive Policy using an over-the-wire tag which segments traffic into security groups to deliver scalable security. The Catalyst 9300-M is integrated under the Meraki dashboard to provide a simply powerful solution to the most demanding wired access applications.

Adaptive Policy provides simple & scalable security policies to segment traffic using Security Groups. Security Groups are created in the dashboard using natural language such as "IOT device” & “Guest.” The security policy intent (e.g., Permit or Deny) is then simply provisioned between Security Groups which results in the segmentation of each group’s traffic. By making security policy management intuitive and scalable relative to legacy IP-address based Access Control Lists, Adaptive Policy empowers operators to confidently secure their network traffic independent of future network changes.

By pooling & distributing power across C9300-Ms using a series of StackPower cables, StackPower provides simple and resilient power distribution across the stack.

A Catalyst 9300 switch can also be migrated to a Meraki-managed persona, where it would function as its Catalyst Meraki 9300 equivalent. For details on the migration process, please refer to our Getting started: Cisco Catalyst 9300 with Meraki Dashboard guide.

Features

Category	Features
Description	36-port 2.5GbE + 12-port mGbE UPoE switch
Highlights	Layer-3 40G or 10G modular uplink options on all models mGig support Dual Dedicated 120G Hardware Stacking Ports PoE+ and UPoE Support StackPower in a ring topology supporting upto 4 switches
Management	Managed via Cisco Meraki Dashboard Zero-touch remote provisioning (no staging needed) Basic configuration capability via local management page Detailed historical per-port and per-client usage statistics Operating System, device, and hostname fingerprinting Automatic firmware upgrades with scheduling control SNMP and SYSLOG support for integration with other network management solutions*
Remote Diagnostics	Email, SMS and Mobile push notification alerts1 Ping, traceroute, cable testing, and link failure detection with alerting Remote packet capture Dynamic and interactive network discovery and topology Combined event and configuration change logs with instant search
Stacking	Physically stack up to 8 switches with 480 Gbps of stacking bandwidth on all models Virtual stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration Faster convergence StackPower in a ring topology supporting upto 4 switches
Ethernet Switching Capabilities	802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping) 802.1Q VLAN and trunking support for up to 4,094 VLANs (1000 active VLANs with STP enabled) Single Instance of 802.1s Multiple Spanning Tree Protocol (interoperable with RSTP, STP, PVST, RPVST) STP Enhancements: BPDU guard, Root guard, Loop guard, UDLD Broadcast storm control 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP) 802.3ad Link aggregation with up to 8 ports per aggregate, multi-chassis aggregates supported on stacked switches Port mirroring IGMP snooping for multicast filtering MAC Forwarding Entries: 32K
Layer 3	Static routing, OSPFv2 Multicast routing (PIM-ASM) Warm Spare (VRRP) * DHCP Server, DHCP Relay
Security	Integrated multi-factor authentication for Dashboard management Role-based access control (RBAC) with granular device and configuration control Corporate wide password policy enforcement IEEE 802.1X RADIUS and MAB, hybrid authentication and RADIUS server testing Single-Host/Multi-Domain/Multi-Host/Multi Authentication Port security: Sticky MAC, MAC whitelisting * DHCP snooping, detection and blocking, Dynamic ARP Inspection IPv4 and IPv6 ACLs Secure Connect * Adaptive Policy

Game-changing Benefits:

C9300-48UXM-M specifications:

Interfaces Specifications
Interfaces	36 x 100M/1G/2.5G + 12 x 100M/1G/2.5G/5G/10G
Uplink 10/40GbE (SFP+, QSFP+)	Modular
120G Hardware Stack Port	2
Dedicated Management Interface	1
PoE/ UPoE Capabilities	UPoE
Physical Specifications
Dimensions (h x w x d) W/ Default Power Supply	1.73 x 17.5 x 22.2 in (4.4 x 44.5 x 56.4cm)
Weight	20.50 lb (9.34 kg)
Mount Type	1U Rack Mount
Hot Swap Fans	Yes, 3x
Operating Temperature	-5°C to 45°C
Humidity	5 to 90%
Performance
Switching Capacity	580 Gbps
Stacking Bandwidth	480 Gbps
Forwarding rate	431.54 Mpps
Power Supply and Specifications
Default Power Supply	PWR-C1-1100WAC-P-M
Hot Swap Power Supply	Yes, Dual
Available PoE W/ Primary PS	490W
Available PoE W/ Secondary PS*	1590W
Power Load (idle/max)	218.5 / 785.5 W
Regulations and Compliance
Electromagnetic Compatibility	FCC Part 15 (CFR 47) Class A, ICES-003 Class A, CISPR22 Class A, CNS13438, EN 300 386 V1.6.1, EN 55022 Class A, EN 61000-3-2, EN61000-3-3, KN 32, TCVN 7189 Class A, EN 55032 , CISPR 32 Class A, V-2/2015.04, V-3/2015.04, VCCI-CISPR 32 Class A, CISPR24, EN 300 386 V1.6.1, EN 55024, KN35, TCVN 7317
Safety	CAN/CSA-C22.2 No. 60950-1, UL 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1
Environmental	Reduction of Hazardous Substances (RoHS)
Warranty	Full lifetime hardware warranty with next-day advanced replacement included
MTBF Rating
MTBF at 25°C	202,160
Package contents
Whats In the Box	In addition to the MS switch, each shipment includes the following. 1 x default power supply unit for the switch model (please refer to the power supply and specifications section) Rack mount brackets and screw kit 3 x Pre-installed fans.

Documentation:

Download the Cisco Meraki Catalyst 9300-M Series Switch Datasheet (PDF).

Download the Cisco Meraki MS Family Datasheet (PDF).
