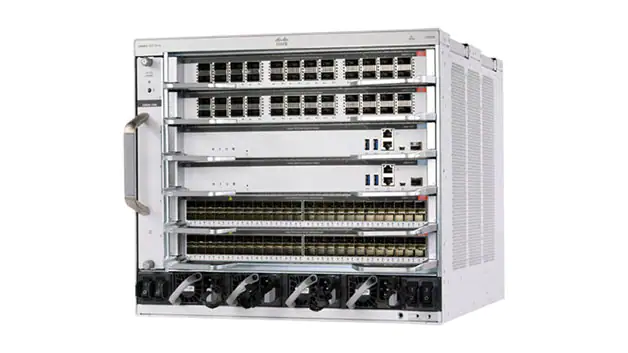

Cisco Catalyst 9600 Series Switches
Purpose-built for resiliency at scale

Smart Operation

WebUI:

WebUI is an embedded GUI-based device-management tool that provides the ability to provision the device, to simplify device deployment and manageability, and to enhance the user experience. It comes with the default image, so there is no need to enable anything or install any license on the device. You can use WebUI to build configurations, and to monitor and troubleshoot the device without having CLI expertise.

RFID Tags:

Cisco Catalyst 9600 Series switches have an embedded RFID tag that facilitates easy asset and inventory management using commercial RFID readers.

Blue Beacon:

Cisco Catalyst 9600 Series switches support both front and back blue beacon LEDs for easy identification of the switch being accessed.

Bluetooth Ready:

Cisco Catalyst 9600 Series switches have hardware support to connect a Bluetooth dongle to your switch, enabling you to use this wireless interface as an IP management port interface. The port can be used for configuration and troubleshooting using WebUI or the Command-Line Interface (CLI), and to transfer images and configurations.

Full Flexible NetFlow (FNF):

Cisco IOS FNF is the next generation in flow visibility technology. It enables optimization of the network infrastructure, reduces operation costs, and improves capacity planning and security incident detection with increased flexibility and scalability. Catalyst 9600 Series switches are capable of up to 294,000 flow entries.

High-Performance IP Routing

The Cisco Express Forwarding hardware routing architecture delivers extremely high-performance IP routing in Cisco Catalyst 9600 Series switches, based on:

• IP unicast routing protocols (including static, Routing Information Protocol Version 1 [RIPv1], RIPv2, RIPng, and Open Shortest Path First [OSPF], Routed Access) are supported for small network routing applications. Equal-cost routing facilitates Layer 3 load balancing and redundancy across the stack.
• Advanced IP unicast routing protocols (including Full [OSPF], Enhanced Interior Gateway Routing Protocol [EIGRP], and Intermediate System-to-Intermediate System Version 4 [IS-ISv4]) are supported for load balancing and for constructing scalable LANs. IPv6 routing (using OSPFv3 and EIGRPv6) is supported in hardware for maximum performance.
• Protocol-Independent Multicast (PIM) for IP multicast routing is supported, including PIM sparse mode (PIM SM), and Source-Specific Multicast (SSM).
• IPv6 addressing is supported on interfaces with appropriate show commands for monitoring and troubleshooting.

Superior QoS:

Cisco Catalyst 9600 Series switches offers Gigabit Ethernet speeds up to 100 Gbps with intelligent services that keep traffic flowing smoothly, even at 10 times the normal network speed. Industry-leading mechanisms for marking, classification, and scheduling deliver superior performance for data, voice, and video traffic at wire speed. Superior QoS includes granular wireless bandwidth management and fair sharing, 802.1p Class of Service (CoS) and Differentiated Services Code Point (DSCP) field classification, Shaped Round Robin (SRR) scheduling, Committed Information Rate (CIR), and eight egress queues per port.
