Cisco Meraki MG41
Cloud Managed Cellular Gateway

CAT 18 Cellular Connectivity with Integrated Antennas

Cisco Meraki MG41

Get a Quote

Availability: Starting July 6, 2021


Cisco Meraki Products
Cellular Gateway
Cisco Meraki MG41 CAT 18 Cellular Connectivity with Integrated Antennas
*Please Note: Cisco Meraki Enterprise license purchase required for each AP. Antennas are sold separately.
#MG41-HW
Get a Quote!

Click here to jump to more pricing!


Overview:

The Meraki MG41, part of the MG cellular gateway family, enables high-speed, always-on reliable network connectivity for business-critical operations and a hybrid workforce through cellular deployments with gigabit primary or backup cellular uplinks.

MG41: Superfast, resilient connectivity anywhere

MG41 can instantly provision primary cellular connectivity across thousands of sites at once without waiting on broadband or any change in infrastructure, enabling faster business expansion.

Deliver primary gigabit connectivity with MG41 or pair with Meraki MX and SD-WAN to allow for the optimal bandwidth management needed for today’s cloud-first organizations.

With gigabit-level backup cellular connectivity, businesses can rely on MG41 for a consistent experience 24/7/365 to increase business uptime and network resilience.

MG41 allows businesses to confidently deploy primary gigabit cellular at sites where there’s no broadband coverage, the carrier coverage is initially unknown, or there’s a varying level of availability and network reliability from multiple regional carriers.

The dual SIM gives the flexibility to switch to a better performing carrier network through auto-SIM failover or switch to the other carrier when either of the SIM reaches the data cap.

MG41 Product Highlights

  • Built-in CAT 18 connectivity
  • Supports two separate downstream router connections
  • Small form factor
  • PoE or DC powered
  • IP67 rating
  • Manageability from the Cisco Meraki dashboard
  • Self-configuring cellular gateway
  • Automatic firmware upgrades with scheduling control
  • Extensive API support
  • Email, SMS, and mobile push notification alerts
  • Ping, traceroute, cable testing, and link failure detection with alerting
  • Remote packet capture
  • Combined event and configuration change logs with instant search
  • Self-configuring, plug-and-play deployment
  • Sleek, low profile design
  • Built-in CAT 6 LTE connectivity
  • IP67 rated for environments of all types

Features:

Product Highlights

Hardware
  • Sleek form factor
  • x1 CAT 18 Integrated Cellular up to 1.2Gbps
  • x2 nano (4FF) SIM card slots
  • x2 GbE ports
  • Multi-surface mounting bracket for attachment to walls, ceilings, or poles
  • IP67 rated for environments of all types
  • Internal antenna
  • Supports up to 5 simultaneous carrier aggregation (5CA)
  • Supports popular bands like B14 (FirstNet), B48 (CBRS), B66 and B71
  • Supports private LTE

Power

  • DC or PoE
  • x2 PoE ports

Use cases

  • Primary cellular connectivity
  • Failover cellular connectivity

Cloud-based centralized management

  • Managed centrally over the web
  • Zero-touch, self-provisioning deployments
  • Remote troubleshooting tools
  • Secure, user-scheduled firmware updates
  • Remote visibility of key cellular information: IMEI, ICCID, APN, RSRP, RSRQ
  • Auto-SIM failover
  • Configuring APN and other cellular parameters available via dashboard
  • Alerts

Cloud APIs

  • All MG configuration settings executable via APIs

Self-configuring, cellular primary

If a certified carrier SIM card is inserted, the MG41 brings up the cellular connection and automatically connects to the Meraki cloud, downloads its configuration, and joins your network.

Industry-leading cloud management

Meraki’s award-winning cloud-management architecture unifies LAN and management under a web-based dashboard and scales easily from small to large multi-site deployments with tens of thousands of devices. The Meraki dashboard provides intuitive yet powerful role-based administration, firmware updates, configuration changes, email alerts, and easyto-audit change logs.

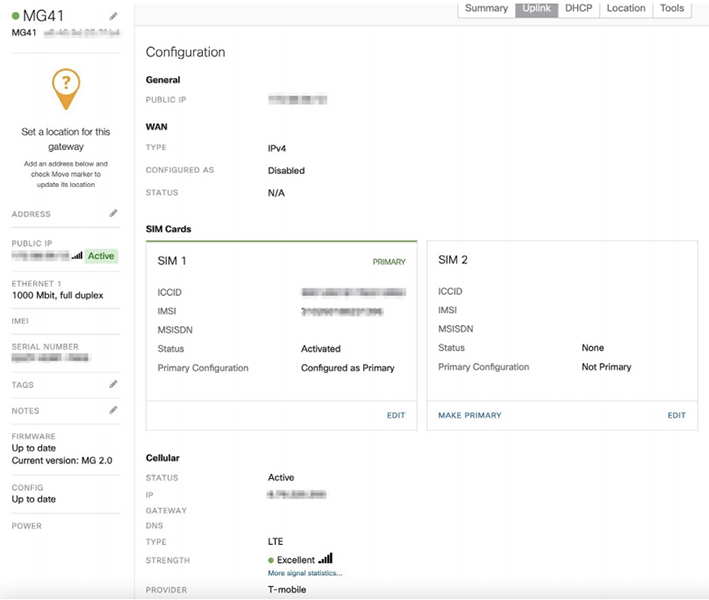

MG41-configuration-feature

Local Status Page (LSP)

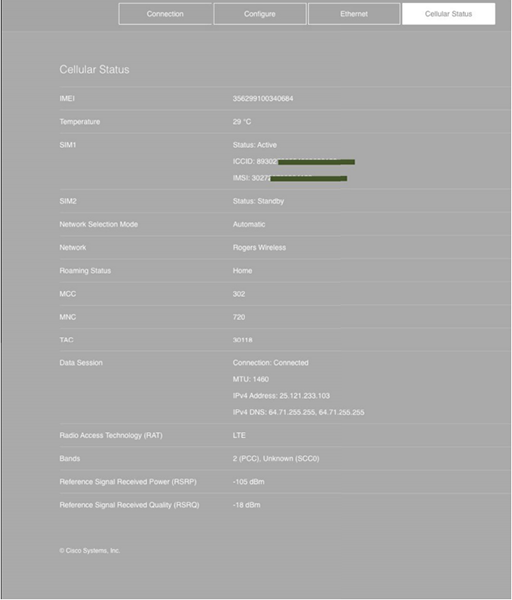

Local Status Page-1

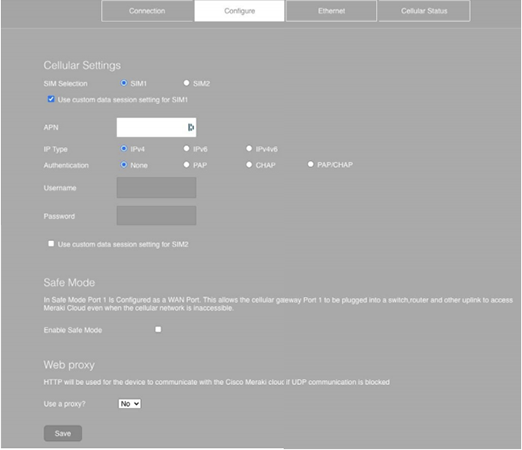

Local Status Page-2

Local Status Page-3

MG41 specifications:

Performance

  • 1.2 Gbps Downlink (DL)/ 150 Mbps Uplink (UL)

Interfaces

  • 2 * PoE IN
  • LAN interfaces: 2 x GbE
  • 1 x CAT 18 LTE integrated cellular

Monitoring and Reporting

  • Throughput, connectivity monitoring
  • Org-level change logs for compliance and change management

Environmental Specifications

  • Power: 12V/1A, 48-57V DC/0.35A
  • Operating temperature: -22°F to 122°F (-30°C to 50°C)
  • Humidity: 5 to 95% non-condensing
  • IP67 environmental rating
  • Desktop or wall mount or ceiling mount (all standard mounting hardware included)

Remote Diagnostics

  • Live remote packet capture
  • Real-time diagnostic and troubleshooting tools

Management

  • Managed via the web using the Meraki Cloud Controller
  • Single pane of glass management of wired and wireless networks
  • Zero-touch remote deployment (no staging needed)
  • Automatic firmware upgrades and security patches
  • Centralized policy management
  • Org-level two-factor authentication and single sign-on
  • Role based administration with change logging and alerts

Integrated Cellular

  • Support for major bands: 2, 4, 5 ,12, 13, 14, 48, 66, 71 *Refer to the datasheet for the full list
  • 1.2 Gbps Downlink (DL)/ 150 Mbps Uplink (UL)
  • Additional regulatory information: PTCRB (US), RCM (ANZ, APAC), GCF (EU)

Supported UICC/SIM

  • 2 * external SIM card

Regulatory

  • FCC (US)
  • CB (IEC)
  • CISPR (Australia/New Zealand)
  • PTCRB (North America)
  • RCM (Australia/New Zealand, Asia Pacific)
  • GCF (EU)

Warranty

  • Full lifetime hardware warranty with next-day advanced replacement included.


Pricing Notes:

Cisco Meraki Products
Cellular Gateway
Cisco Meraki MG41 CAT 18 Cellular Connectivity with Integrated Antennas
*Please Note: Cisco Meraki Enterprise license purchase required for each AP. Antennas are sold separately.
#MG41-HW
Get a Quote!
Enterprise Cloud Controller Licensing and Support
Cisco Meraki MG41 Enterprise License and Support, 1 Year
#LIC-MG41-ENT-1Y
Get a Quote!
Cisco Meraki MG41 Enterprise License and Support, 3 Year
#LIC-MG41-ENT-3Y
Get a Quote!
Cisco Meraki MG41 Enterprise License and Support, 5 Year
#LIC-MG41-ENT-5Y
Get a Quote!
Cisco Meraki Accessories
Cisco Meraki AC Adapter for MR Wireless Access Points (US Plug)
#MA-PWR-30W-US
Our Price: $36.25
Cisco Meraki Gigabit 802.3at Power over Ethernet Injector
#MA-INJ-4-US
Our Price: $186.77
