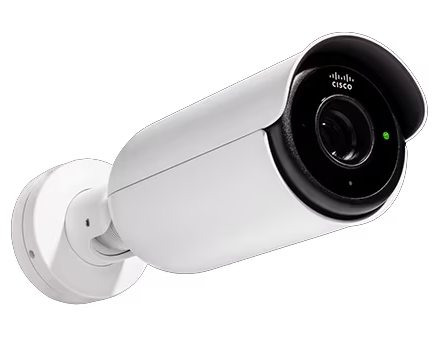

Cisco Meraki MV53X
Durable outdoor telephoto bullet camera for harsh environments with up to 120 days of video retention

Overview:

Ultra-high performance 4K resolution camera with AI analytics for effective parking lot and outdoor monitoring.

This MV53X is a new member of the third-generation MV smart camera family. It is an outdoor bullet camera that combines advanced analytics and 12-37° varifocal FoV. This camera provides long distance monitoring and security for a variety of deployments including parking lots, warehouses, security checkpoints and more.

Product Highlights

Features:

Safe, smart, and secure

---

Cutting edge architecture with streamlined managment

Meraki MV architecture

Meraki brings simplicity to physical security deployments with expertise in distributed computing. With cloud-augmented edge storage, MV smart cameras provide groundbreaking ease of installation, configuration, and operation. Eliminating the NVR reduces equipment CapEx and the simplified architecture minimizes lifetime OpEx costs.

Each MV smart camera comes with integrated, ultra-reliable, industrial-grade storage. This cutting-edge technology allows the system to efficiently scale to any size, with storage expanding with the addition of each camera. Plus, as video is stored locally, administrators can rest easy knowing that even if the network connection cuts out, the cameras will continue to record footage.

---

Integrated wireless for flexible deployments

As the primary storage is on the camera itself, very little bandwidth is used unless video is being watched. This unique architecture makes it possible to wirelessly deploy MV smart cameras with minimal impact to the network. All MVs have wireless functionality built in, meaning they can be deployed without having to run new cabling for connectivity. The option for wireless deployments offers organizations an easy upgrade path for analog cameras without the need for recabling and allows greater flexibility for remote or temporary sites.

---

---

---

Secure and always up-to-date

Centralized cloud management offers one of the most secure platforms available for camera operation. Built with Cisco Trust Anchor modules, secure boot, firmware image signing, and runtime defenses, MV smart cameras are protected and tamper-proof. Access to the camera is encrypted with a public key infrastructure (PKI) that includes individual camera certificates. Local video is also encrypted by default and adds a final layer of security. All security measures are on by default, require no user configuration, and cannot be turned off.

Software updates are managed automatically for the delivery of new features and to enable rapid security updates. Scheduled maintenance windows ensure the MV family continues to address users’ needs with the delivery of new features as part of the cloud service.

Specifications:

Category	Specifications
Camera	1/1.8” 8.41MP (3840x2160) progressive CMOS image sensor 12-37° Varifocal Lens 1TB high-endurance solid-state storage 12.5-38 mm focal length range f/2.05 - f/2.2 aperture range Auto and Manual Focus Controls Auto day/night capable Built in IR-illuminators, effective up to 50m (149 ft)
Video	4K (3840x2160) with H.264 Smart Codec, up to 15fps 4MP (2560 x 1440) with H.264 Smart Codec, up to 24fps 1080p (1920x1080) with H.264 Smart Codec, up to 24fps High dynamic range (HDR) Cloud augmented edge storage (locally stored video, metadata in the cloud) Optimized retention settings (scheduling, motion-based) for variable retention Direct live streaming with no client software (native browser playback)* Stream video anywhere with automatic cloud proxy
DORI Specifications (Maximum Resolution)	Maximum FoV [Wide] Detect (25 ppm/ 8 ppf) 246.5 m / 808.7 ft Observe (63 ppm/ 19 ppf) 97.8 m / 320.8 ft Recognize (125 ppm/ 38 ppf) 49.3 m / 161.7 ft Identify (250 ppm/ 76 ppf) 24.7 m / 81.0 ft Minimum FoV [Telescopic] Detect (25 ppm/ 8 ppf) 778.8 m / 2555.1 ft Observe (63 ppm/ 19 ppf) 309.1 m / 1014.1 ft Recognize (125 ppm/ 38 ppf) 155.8 m / 511.2 ft Identify (250 ppm/ 76 ppf) 77.9 m / 255.6 ft
Data and Network Security	Full disk encryption (AES 256-bit) Automatically purchased and provisioned TLS certificates (publicly-signed) Management encryption and two-factor authentication
Networking and wireless	1x 10/100/1000 Base-T Ethernet (RJ45) DSCP traffic marking
Power	Power Consumption: up to 30W via 802.3at PoE PoE+ required for operation
Environment	Temperature: -40°C to 50°C (-40°F to 122°F)**
Physical characteristics	Female RJ45 Ethernet connector Multicolor, multifunction status LED, microphone cut-off switch Reset Button
Warranty	Five-year hardware warranty with advanced replacement
Hardware	MV53X-HW Varifocal lens outdoor bullet camera with 1TB storage
In the box	Quick-start and installation guide MV camera hardware Wall-mounting kit Security and installation wrenches

Documentation:

Download the Cisco Meraki MV53X Series Outdoor Smart Cameras Datasheet (PDF).

Download the Cisco Meraki MV Cloud Managed Smart Cameras Datasheet (PDF).
